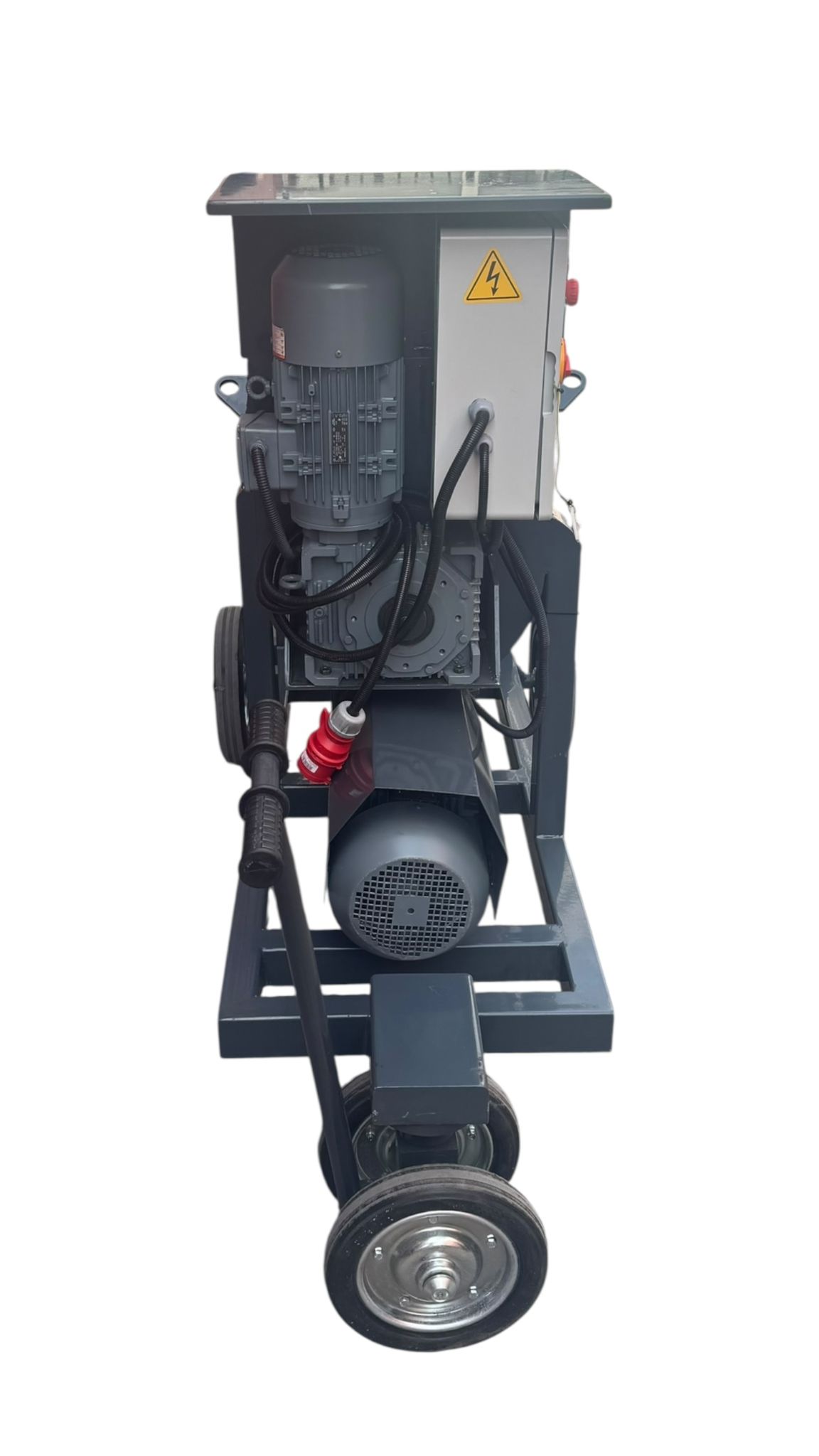

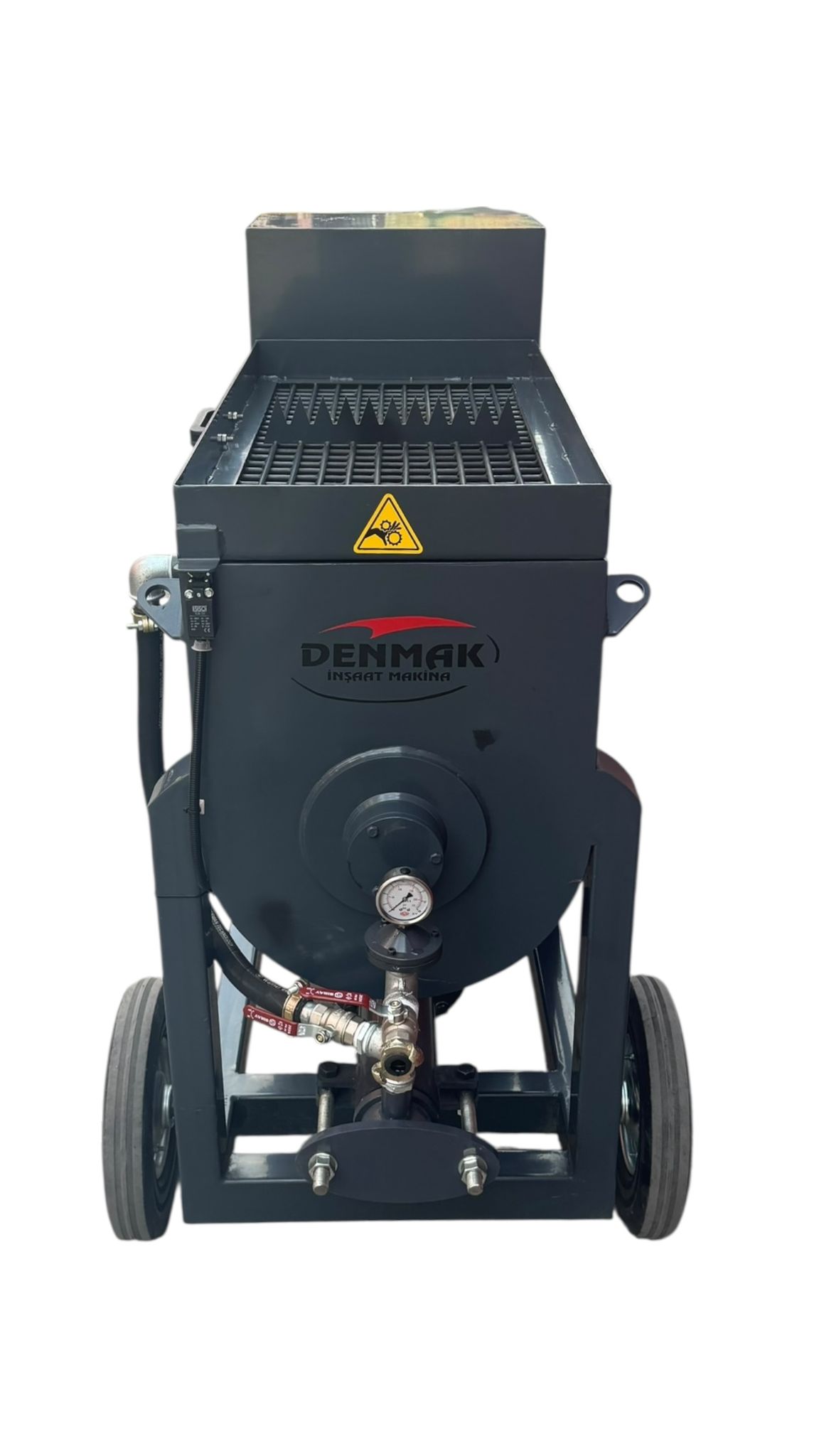

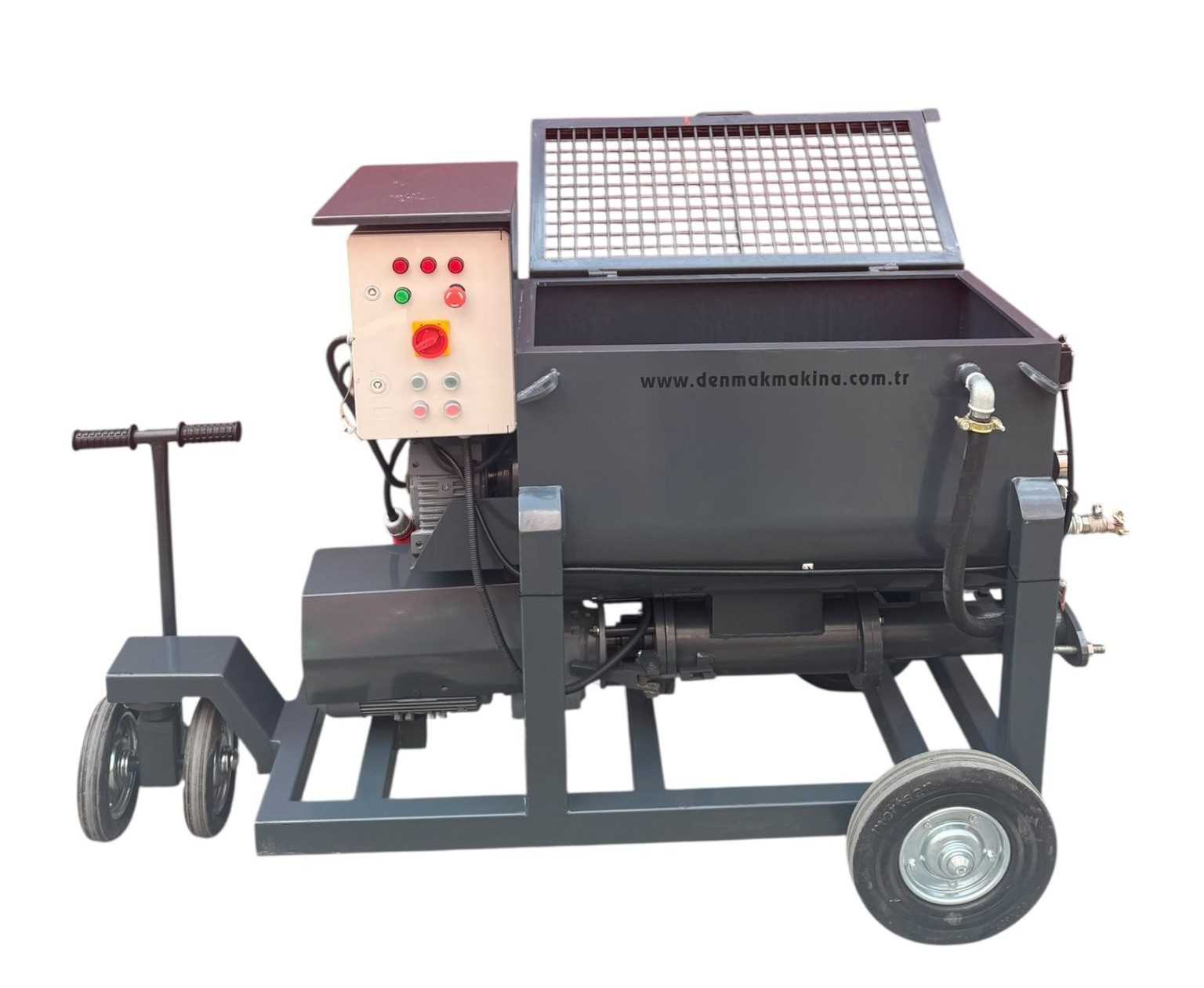

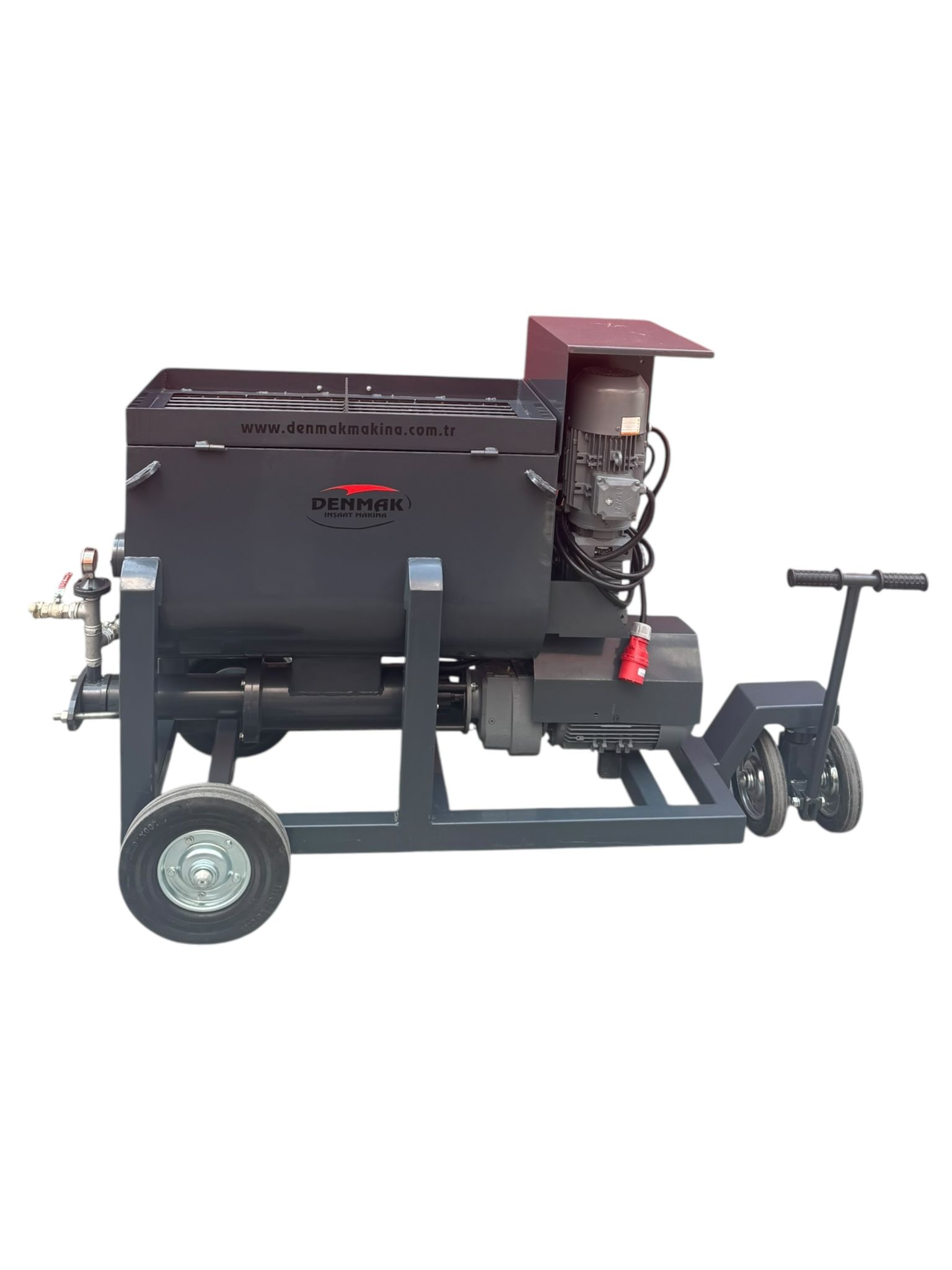

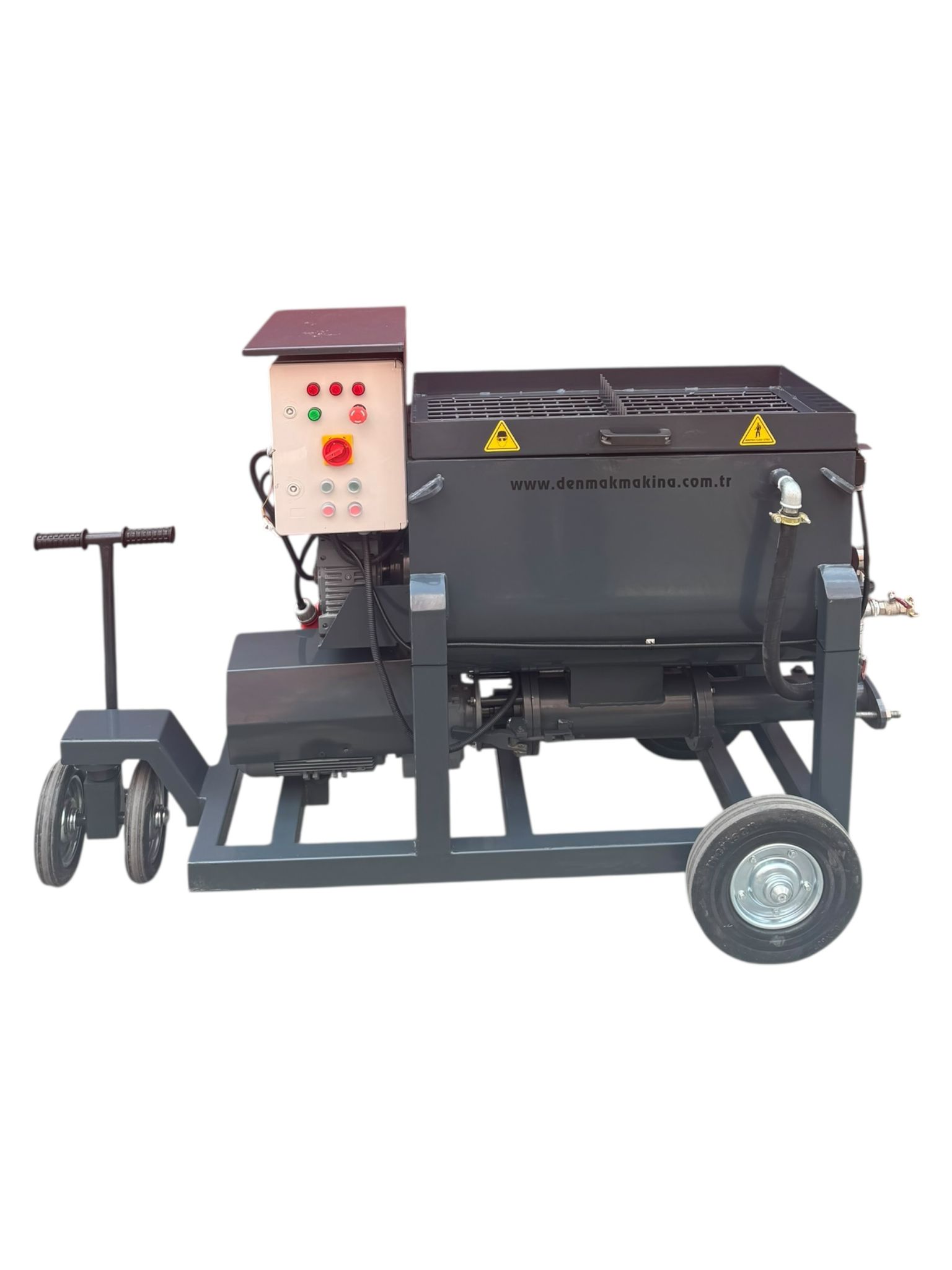

DM-KEM 30 Cement Injection Machine with Boiler Tank

DM-KEM 30 Cement Injection Machine with Boiler Tank

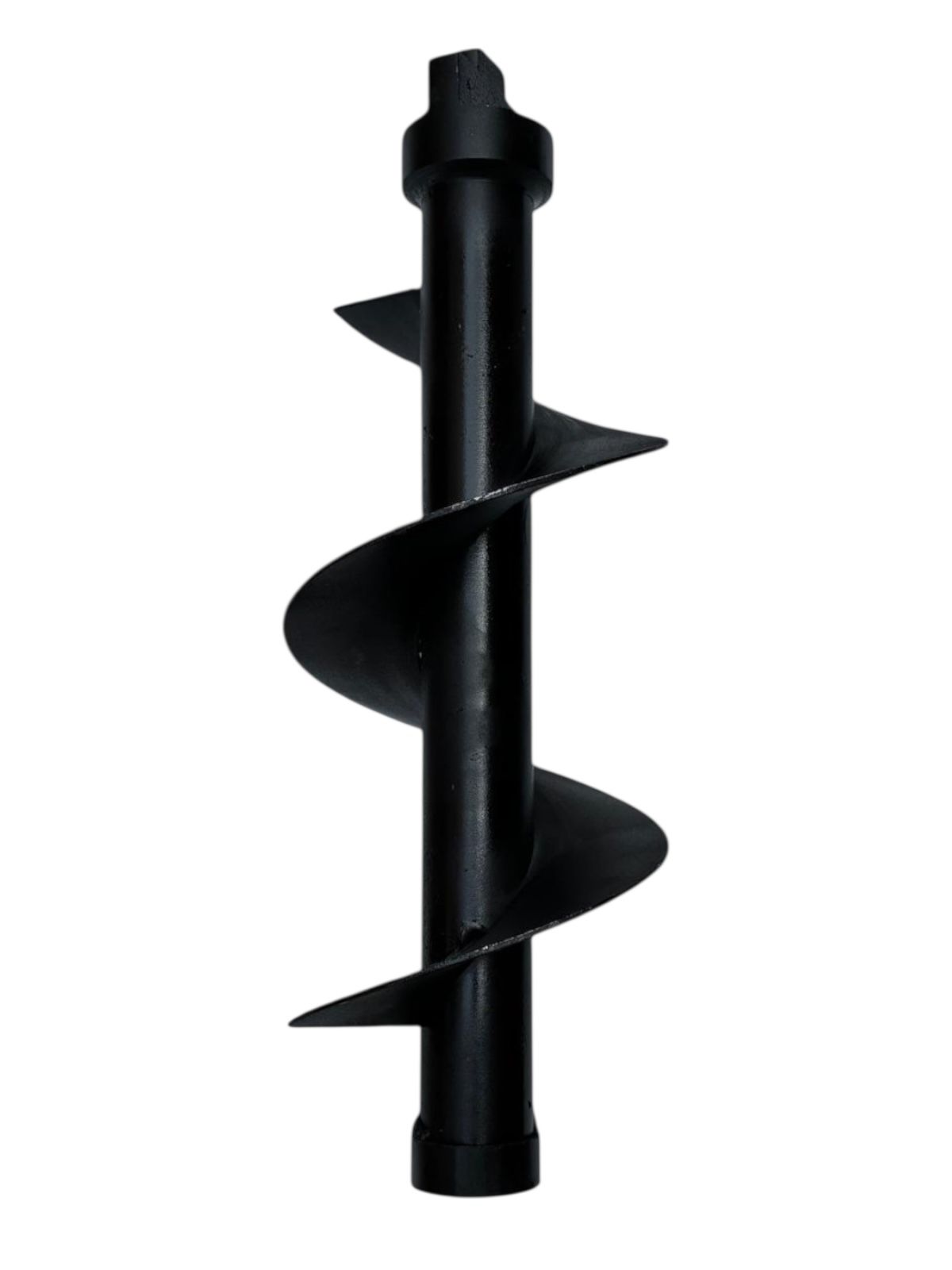

DM-KEM 30 is a machine used for pumping high-density and low-fluidity liquid calcium-based chemicals (cement, gypsum, ready-mixed plaster, screed, mortar, etc.) by injection method in horizontal and vertical positions under high pressure. It is an effective solution for repair, stabilization, and strengthening works of structures such as bridges, buildings, and dams; as well as for anchor filling, floor screed, mortar, and cement pumping processes. Thanks to its integrated mixer and water inlet section, mixing ratios can be easily adjusted. The mixture in the tank is conveyed to the application area via a hose, and hose ends can be changed according to customer needs. All parts in contact with the material are washable and corrosion-resistant. The double-sealed, water and dustproof electrical panel ensures maximum operator safety. Safety features such as phase sequence, voltage, leakage current, overcurrent, and thermal protection are available. Spare part replacement is easy and requires no calibration. Thanks to its compact design, it can be easily used in narrow and low-ceiling areas. With its high-quality components and affordable cost, DM-KEM 30 is an ideal machine for your equipment park.

TECHNICAL SPECIFICATIONS (EN)

  • Dimensions: 220 × 85 × 145 cm

  • Gross Weight: 400 kg

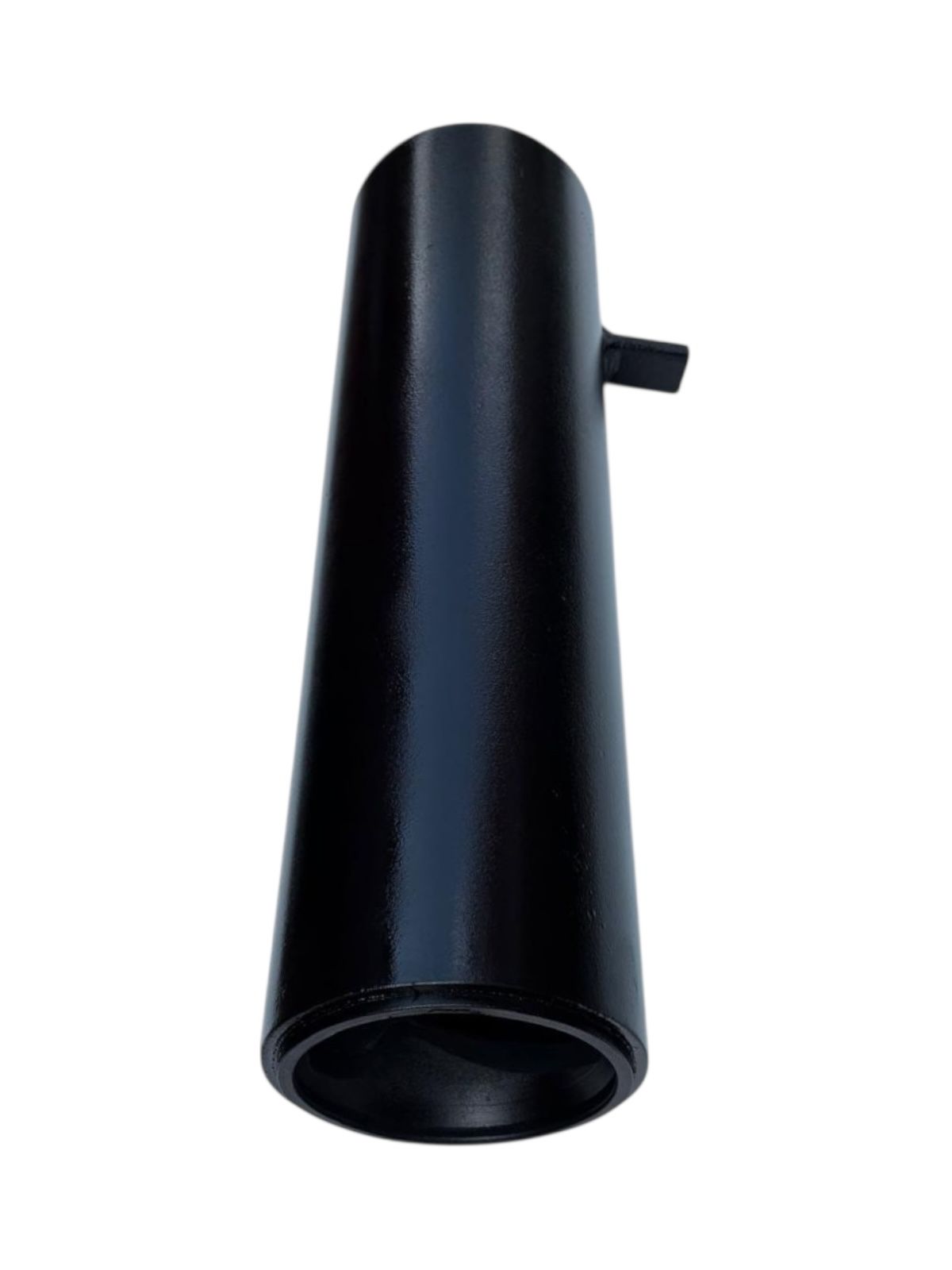

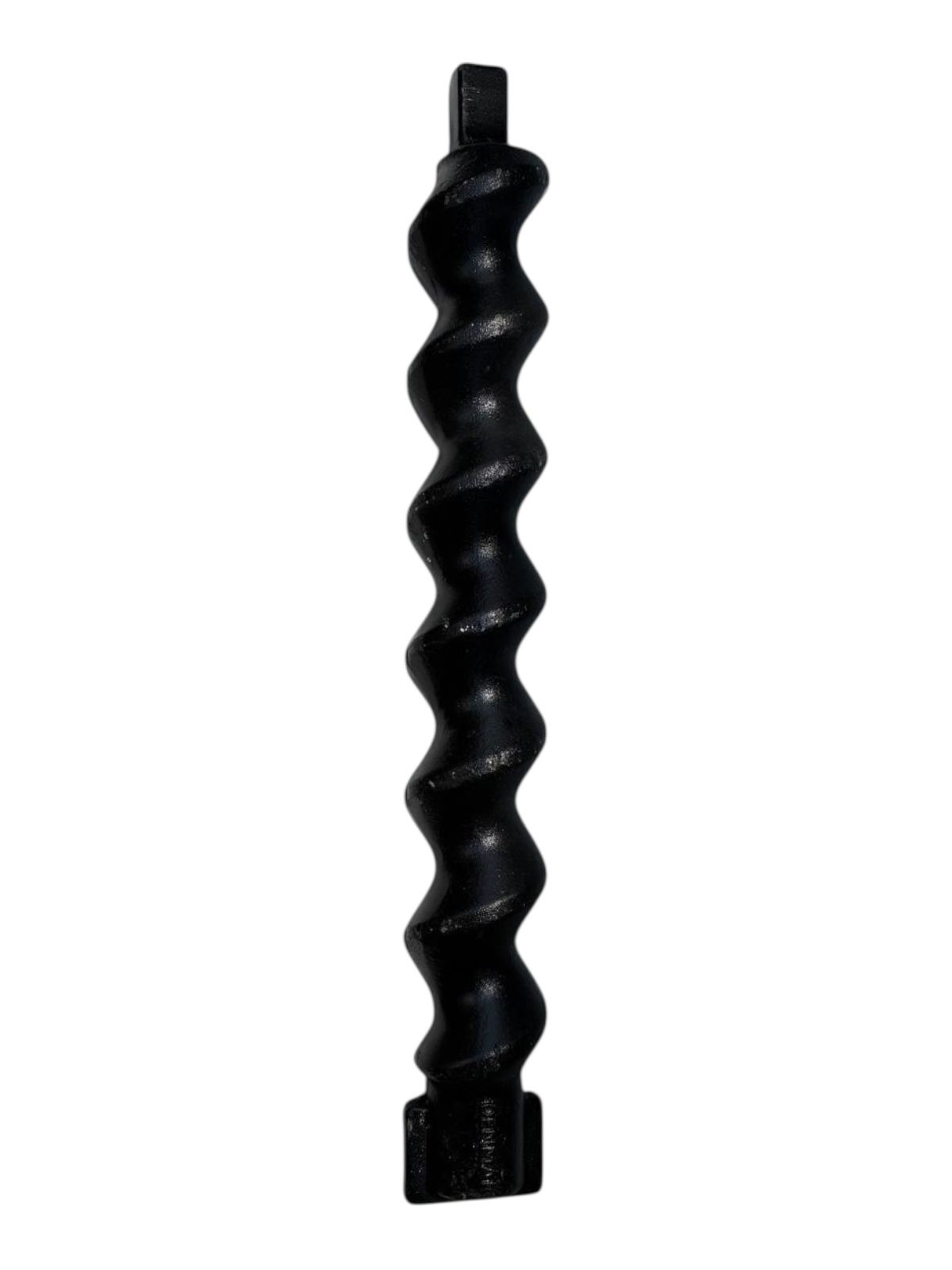

  • Rotor Type: P8

  • Theoretical Pumping Capacity: 70 L/min

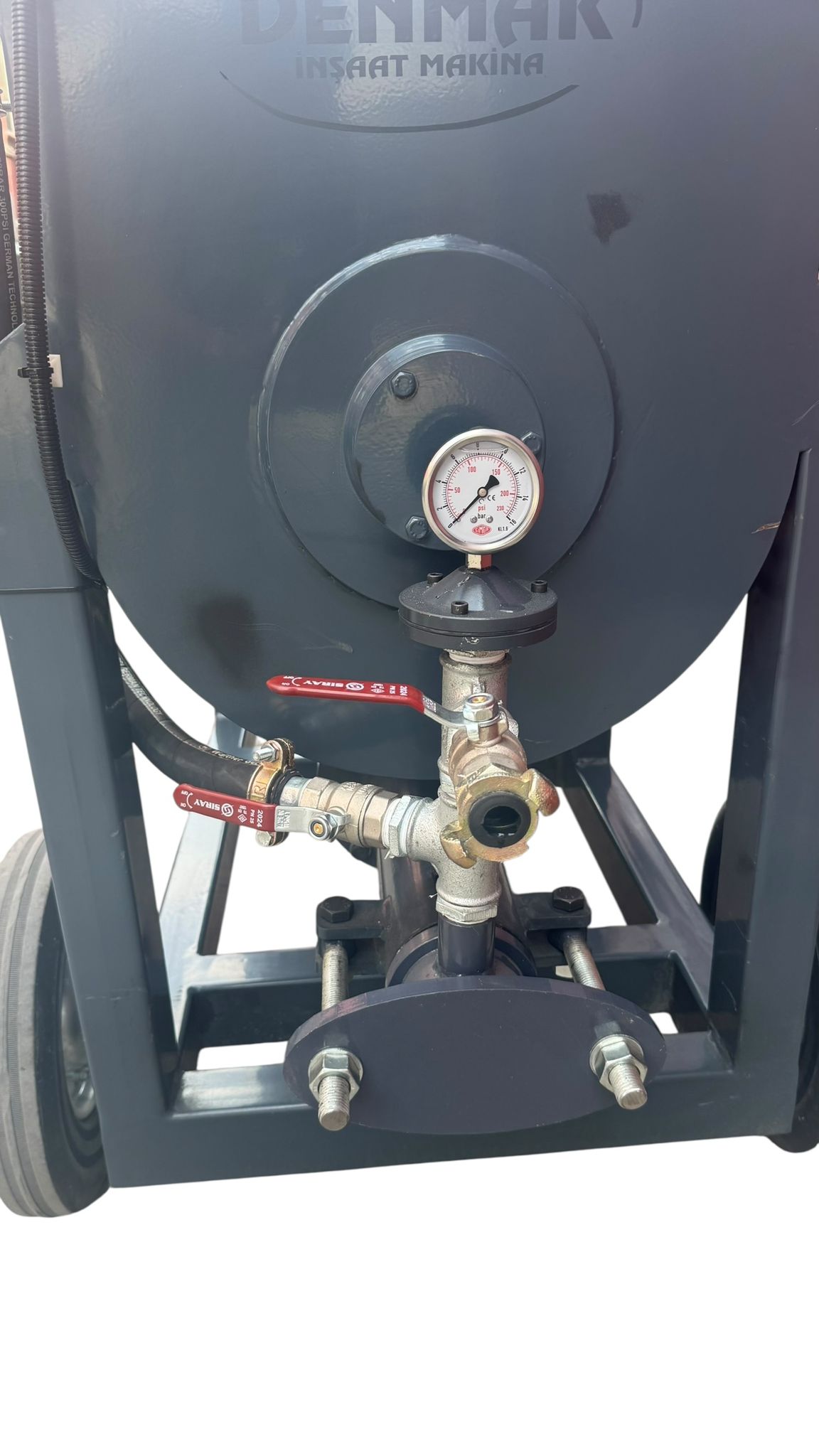

  • Maximum Output Pressure: 40 bar

  • Output Hose Diameter: 1 inch

  • Max Delivery Distance (Vertical): 80 m

  • Max Delivery Distance (Horizontal): 100 m

  • Main Motor Power: 7.5 kW

  • Mixer Motor Power: 3 kW

  • Voltage / Frequency: 380 V / 50 Hz

  • Total Power Consumption: 10.5 kW

  • Rotor Speed: 407 rpm

  • Mixer Speed: 55 rpm

  • Tank Capacity: 200 Liters
